Highlights


Highly flexible and modular (Zero Force Quick ChangeOver concept)

High reliability and cost-efficient measurements

User-centered eco-design to meet high ergonomic standards

Fast and accurate identification of error sources

Reference Tech Specs

Dimensions
(in mm)

810 (W) x 1150 (L) x 2100 (H) mm

Communication protocols

Host-link protocol (PC-PLC)
LXI protocol (PC-Multimeter-Power supply)
Proprietary protocol (PC-VPC interface)

Power Supply
Voltage
Frequency
Current



230VAC
50Hz
20A

Measurement functions

DC/AC voltage, DC/AC current, frequency, power factor, power level, resistance, capacity, temperature, among others

Auto diagnosis function (new feature)
under development

DUT emulator for machine conformance validation

Technical support

Ready for remote assistance with augmented reality

Downloads

For additional information, contact Controlar at info@pt.controlar.com

Overview

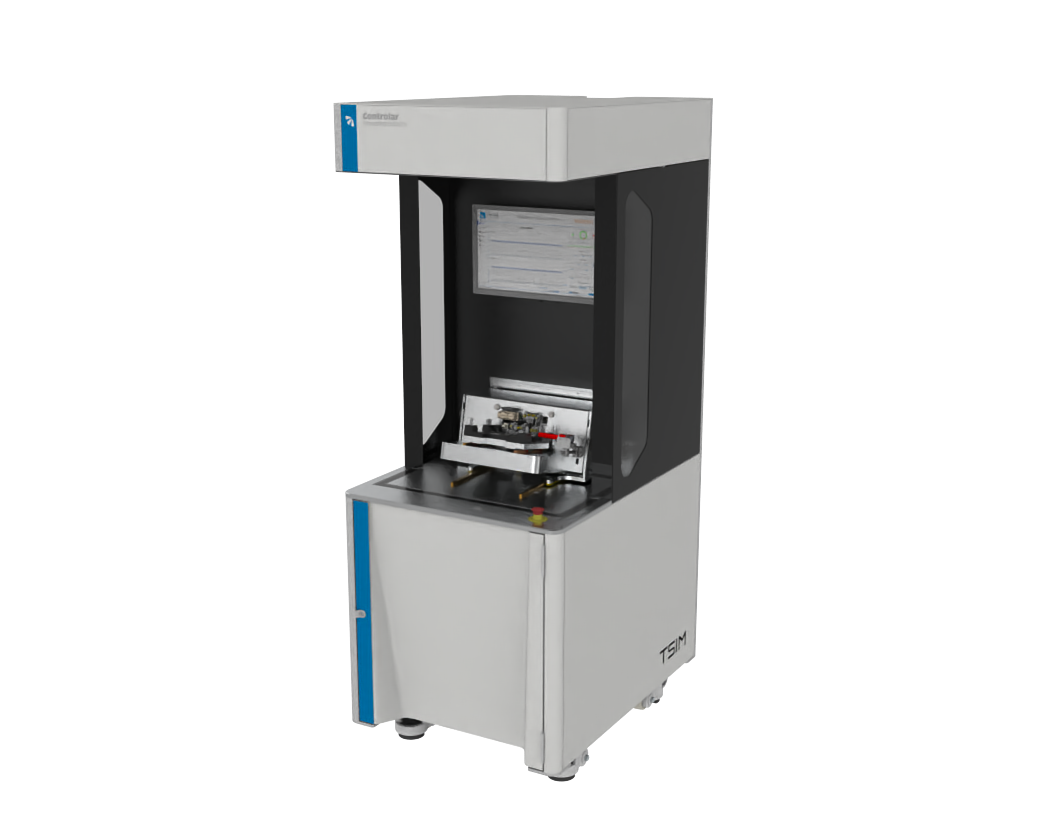

TSIM – Test System Intelligent Machine was developed by Controlar to perform different levels of functional tests on electronic devices and components at the end of the production line (EoL) to ensure correct functionality of the DUTs.

This complete solution is prepared for flexible and dynamic production, using a standard interface and a quick ChangeOver method. The rapid exchange is key to reducing operating times, and thereby improving flow and machine availability.

Suitable to test all key technologies for electronics systems, TSIM is future-proof and adaptable to DUT needs allowing easy upgrade of functionalities.

It also includes auto diagnosis and validation of the system to ensure proper functionality and test repeatability. Remote assistance is also possible using augmented reality goggles or tablet.

Product configuration

TSIM uses a standard interface that allows it to be used for different types of testing concepts. This test solution can be customized with different modules, such as:

  • PCB level – semi automatic and manual
  • Complete device: semi-automatic and semi-automatic RF shield box and instrumentation
  • Bus Interfaces: CAN, LIN, LVDS, BroadR-Reach, MOST150
  • Multimeter, programmable power supply, RF generator and/or analyzer, etc.

TSIM Wireless RF Shield Version

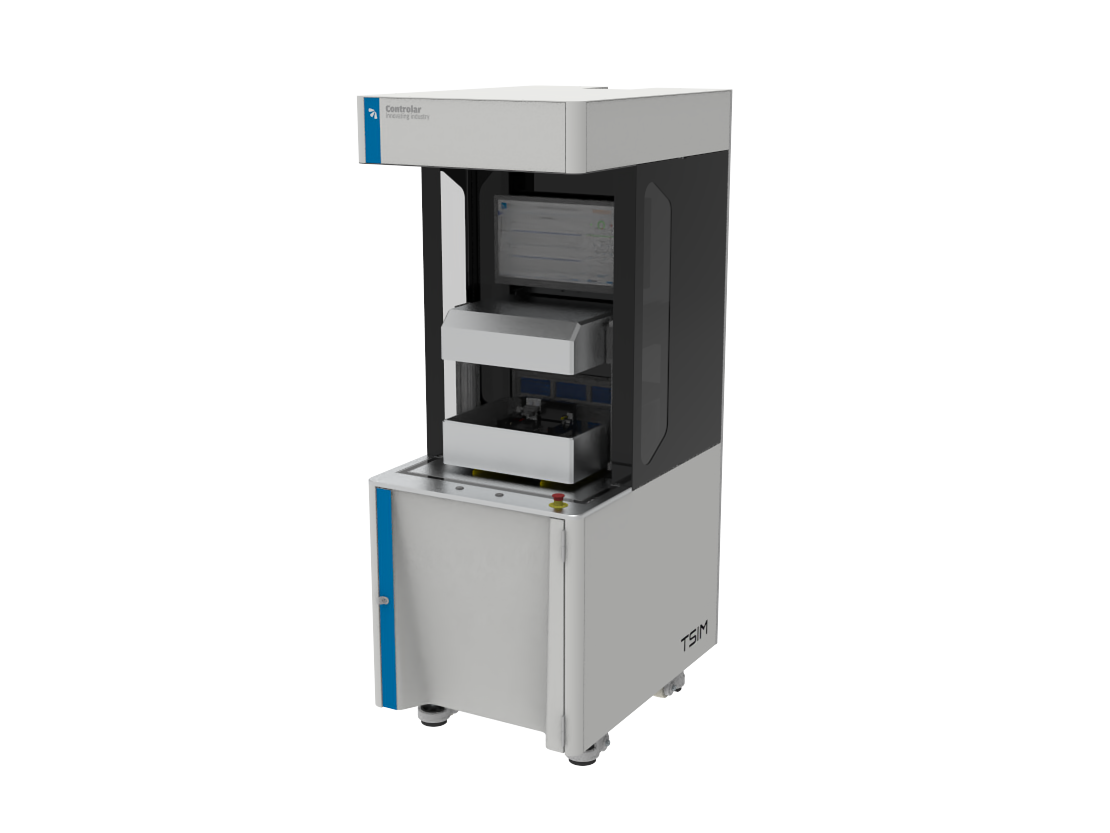

The Wireless RF Shielded variant of the TSIM – Test System Intelligent Machine system features an anechoic chamber that allows for functional testing of wireless systems (e.g., IVS) and others, such as infotainment devices with integrated antennas.

Main applications

TSIM was developed to meet the high standards of the automotive industry, which makes it also suitable for other industries, such as consumer and industrial electronics, with the possibility of being customized for different types of products.
