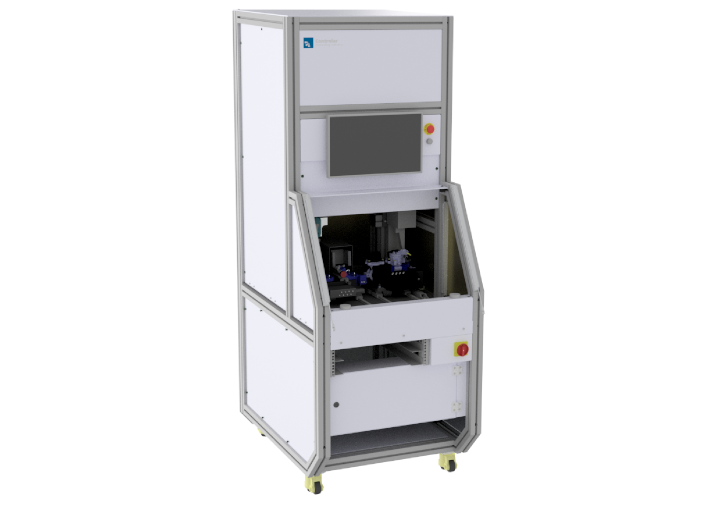

Glue Dispenser
and Screwing Machine
Reference Tech Specs
Dimmensions
(in mm)
1230(L) x 850(W) x 2270(H)
Weight
495 kg
Power supply
Voltage
Frequency
Current
230
50HZ
16
Max. Pressure
(Bar)
6 to 7
For additional information, please contact Controlar at info@pt.controlar.com.
Overview
Machine for glue application and screwing in the final stage of the production of valves for the automotive industry. The process starts with the application of glue inside the electrical connector of the valve and in the plug of the connection cable. Next, a heat shrinkable insulation sleeve is heated between the valve and the cable. Finally, the process is completed with fully automatic screwing of the assembly.
Architecture
The Gluing and Screwing Machine consists of:
- a bonding system
- a heat blower
- a screwing system
The application of glue is performed with a dosing valve moving over the XYZ electric axis with the possibility of various adjustments. The dosing process is controlled by a vision system and a weight calibration scale.
The automatic screwing allows the adjustment and verification of the angle and torque of the tightening, totally autonomous, and through the screw feeding.
The machine consists of three independent setups for each process:
- Setup 1: application of glue
- Setup 2: shrinkable insulation sleeve heating
- Setup 3: automatic screwing
In terms of traceability, the process is controlled by reading the product barcode and interfacing with the production server.
The structure of this machine was designed to sustain and absorb the vibrations resulting from the movements of the set of axles and the screwing system, bearing in mind the ease of maintenance and adjustments.
Main Applications
Versatile machine concept for various applications in the automotive industry, both for dosing and screwing solutions, with the possibility of being expanded to other products.
