CMTS and MTM

Compact Multicell Test System (CMTS) and Multicell Test Modules (MTM)

Controlar - CMTS + MTM

Highlights


Highly modular concept design

– Semi-auto (operator-ready) or full-auto (conveyor line)
– Fully convertible solution
– Different configurations according to test requirements and production demands


Footprint optimization

– Full advantage of available height
– Up to 24 DUTs (Devices Under Test)


Multipurpose functional testing

– Run-in tests with high temperature profiles, (re)flashing, RF tests


DUT-specific mechanical design

Fully electrical movements

– Electrical axis for DUT precise coupling
– No compressed air supply required


Maximum simultaneous testing of 24 devices per test station

Reference Tech Specs

Dimensions
(in mm)
CMTS
MTM

1100 (W) x 1800 (L) x 2300 (H)
560 (W) x 960 (L) x 140/210 (H)

Power Supply
Voltage
Frequency
Current
Electrical power: 17,3 kW



CMTS: 3P/N/PE 400 Vac (standard) / 230VAC
50/60Hz
CMTS: 25A / MTM: 3A
CMTS: 17,3 kW / MTM: 0,7 kW

Pressure (CMTS)

6 bar

Software/ Communication protocol (MTM)

EtherCAT network

Tests

– Bluetooth and WIFI embedded and external antennas loopback test
– Audio production self-test
– Video in/out loopback
– RF antennas
– Automotive audio bus – A2B self-test
– Ethernet loopback tests
– Check ground pins
– Undervoltage
– CAN test communication
– Software flash to unit

Downloads

Se precisar de mais informações, contacte-nos via info@pt.controlar.com

Overview

The CMTS – Compact Multicell Test System is a multipurpose test machine designed for precision, efficiency and footprint optimization by accommodating a large number of test positions while maintaining functionality comparable to other standard test systems.

The station functions as an automatic pick & place system, enabling easy placement and removal of test modules based on test requirements and production demands.

Its modular design allows for a simple line layout reconfiguration, by removing some test cells (modules) without interrupting the production line. Another main advantage of this concept is space saving: the vertical modular configuration allows for the integration of a maximum of 12 modules without the need to increase the production floor footprint.

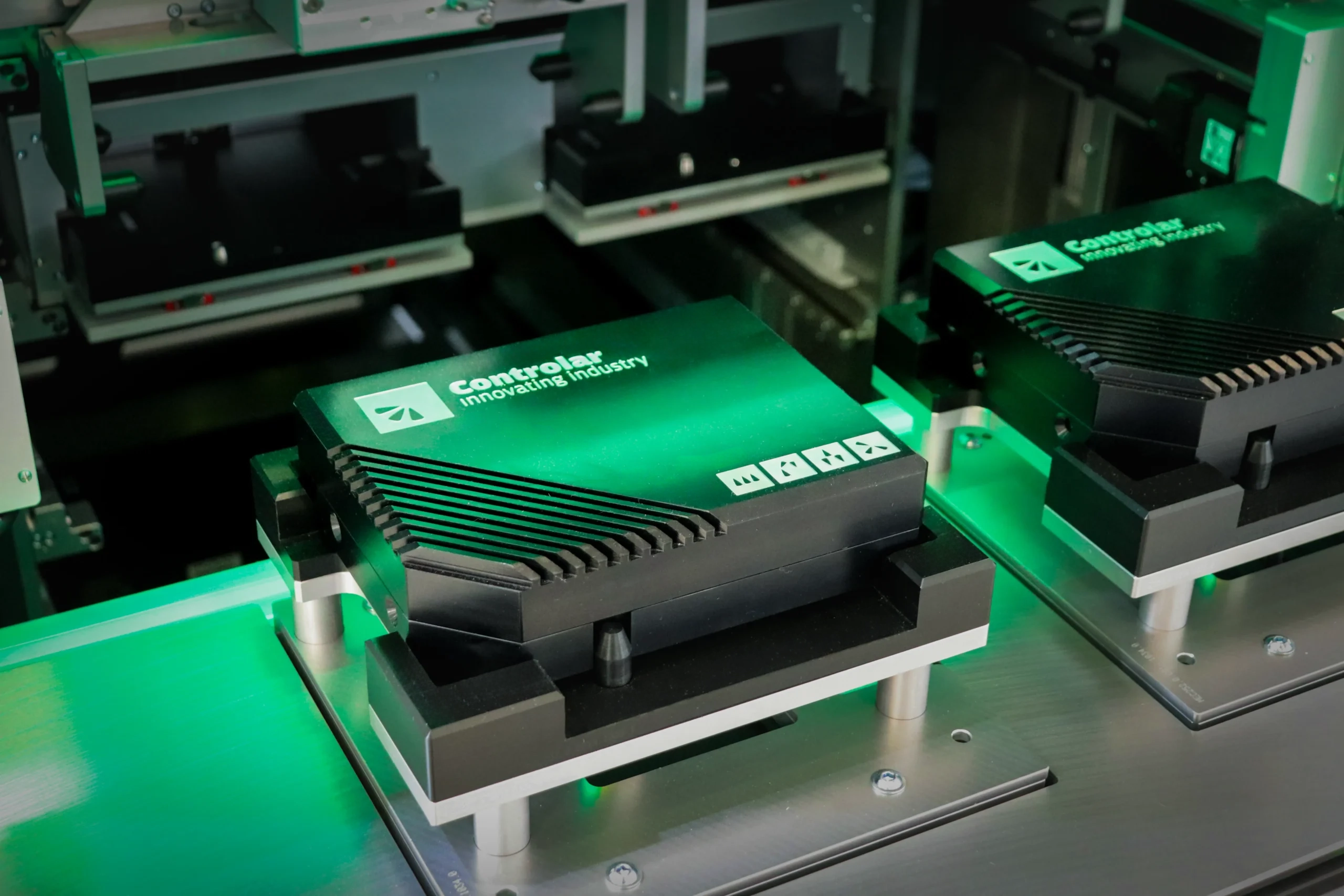

Controlar MTM – Multicell Test Modules are incorporated within the CMTS and have the capacity to execute multiple functions, enabling the integration of diverse functional tests.

The modules are designed with multicell capability, allowing for two Device Under Test (DUT) per tray, according to the specific product and functionality.

Due to the high complexity and numerous configurations, a modular design approach was employed for ordering and assembling different modules. Thus, smaller reusable modules can be utilized across various tray designs. This facilitates easier development of complex modules for different products and functionalities.

Product Configuration

CMTS

  • Station capacity
    – Total MTMs space: max of 24 CTUs (Controlar Test Units) According to module type.
    – Max. simultaneous testing of 12 MTM (12 DUTs)
    – Suitable for modular configuration according to test requirements
  • Integration of specific test equipment
    – Bottom and/or top position rack
  • Front and/or rear monitor for HMI display
  • Safety panel sensors, barriers, and other safety equipment
  • Optional hardware
    – Air extraction/ventilation system

MTM

  • Main components
    – Mini-PC
    – DUT base plate
    – Connector box
    – Electrical box
    – Interface panel
  • Modules capacity
    – Dependent on the specific product and functionality.
    – Multicell capability (up to 300mm DUT width)
  • Rear connections
    – Modular rear panel interface connector (ODU)
    – Extra real panel connections for mini-PCs direct access (USB + HDMI)
  • Modules changeover
    – Similar handling to other standard lifters
    – Semi-automatic system for locking and unlocking modules
    – Can be used as a quick debug station
  • Modular PCB system with “Plug & Play” solution

Main Applications

This concept is specifically suited for the Automotive industry for functional testing of electronic components, with the possibility to be integrated into automated factory production lines and worldwide distribution.
