The MILS test handling series is a versatile and cost-effective test handling solution designed for In-System Programming (ISP) and Functional Testing (FCT) of PCBs.

The MILS platform is engineered for high-speed operation, easy fixture changeover, and compatibility with various electronic test technologies. It supports a wide range of PCB dimensions and offers future expandability, making it a versatile solution for demanding testing environments.

Thanks to its compact footprint and serial line connectivity, the MILS700 can operate in in-line system configurations alongside other handlers.

• Robust construction: Built with a high-resistance aluminum structure, capable of withstanding forces up to 8 kN.

• Automatic conveyor adjustment: Conveyor width automatically adapts to product dimensions, with programmable memory settings.

• High-speed conveyor: Programmable transport speeds up to 1000 mm/s.

• Pneumatic compression system: Includes dual-stage actuation for reliable test contact.

• Lateral DUT connector actuation: Supports precise insertion of USB, Ethernet, and other connectors for enhanced repeatability.

• Efficient handling: Approximate machine cycle time of 5 seconds (excluding testing).

• Quick fixture exchange: Ergonomic design enables fixture changeover in under 3 minutes.

• Fixture validation: Fixture coding on both top and bottom plates ensures product and fixture recognition.

• Modular pilon blocks: Designed for integration of CAN, RF, pneumatic, or other specific instrumentation.

• System communication: Compatible with .NET, NI LabWindows/CVI, LabVIEW, or other platforms using TCP/IP communication.

• Beckhoff virtual PLC with HMI: Ensures advanced system control and intuitive monitoring.

• Compatible fixture kits: Works with XILS600 and ILS700 fixture kits.

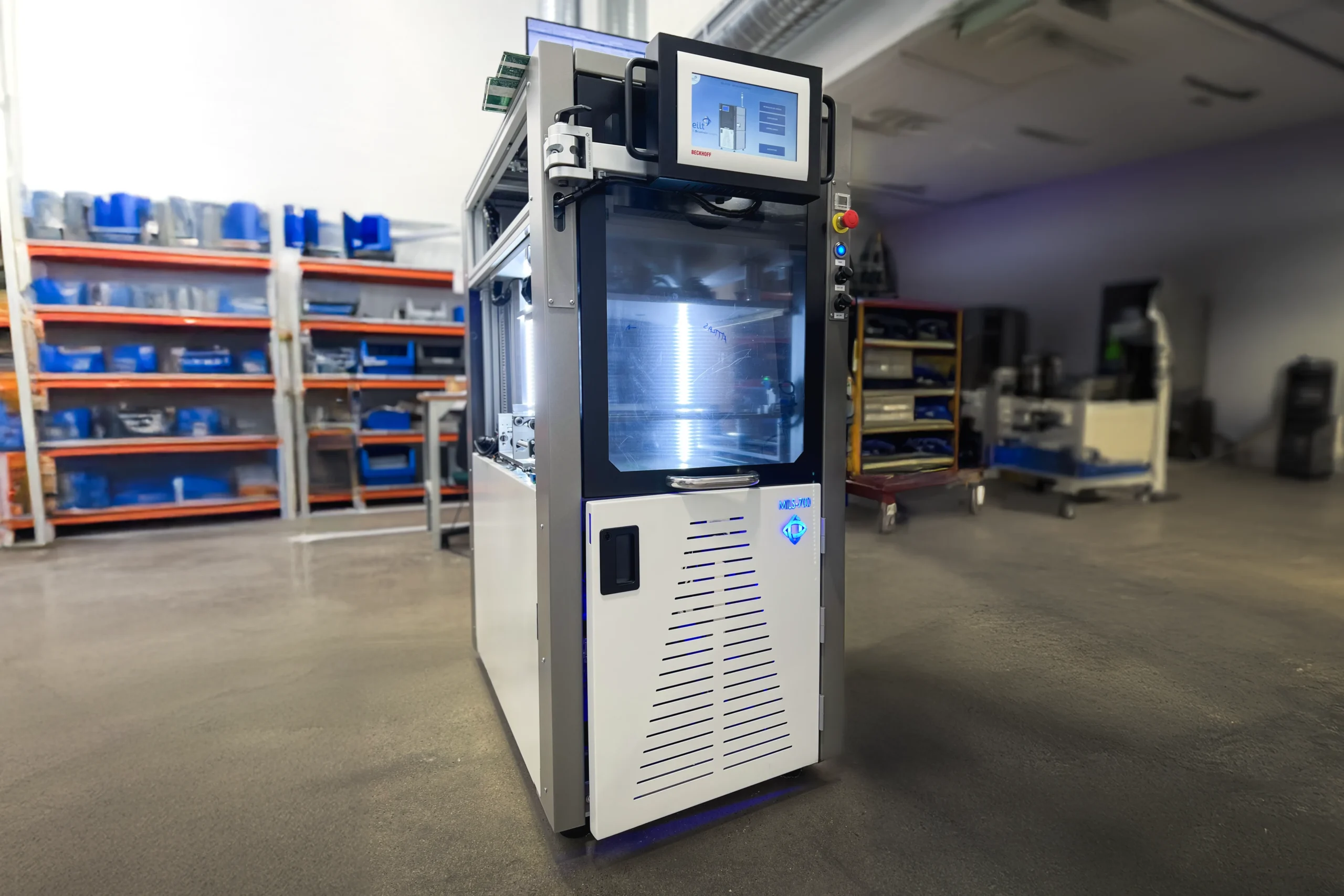

MILS700 is a versatile in-line handler designed for global integration of instrumentation. It supports manufacturers such as Teradyne, Keysight, Checksum, TRI, and others.
