Led Calibration In-Line System
CILS1500

Highlights

Flexible and scalable solution for both small production runs and large-scale batches.

Easily adaptable to various panel sizes and configurations, accommodating diverse calibration needs.

Equipped with advanced technologies for accurate correction of color and intensity variations in LEDs.

Meets the highest industry standards, guaranteeing reliability and quality in LED lighting products.

Systems can be connected in an in-line system configuration, saving space and optimizing workspace.

Reference Tech Specs

Dimensions
(in mm)

1500 (W) x 1500 (L) 2300 (H)

Weight

1000 kg

Electrical power

3×80 Vac // 50-60 Hz

Pneumatic requirements

6 bar

Handling time
(machine cycle)

Approx. 6 sec. (machine cycle time excluding test)

Typical application

RGB Calibration

Machine communication

Sockets communication

Overview

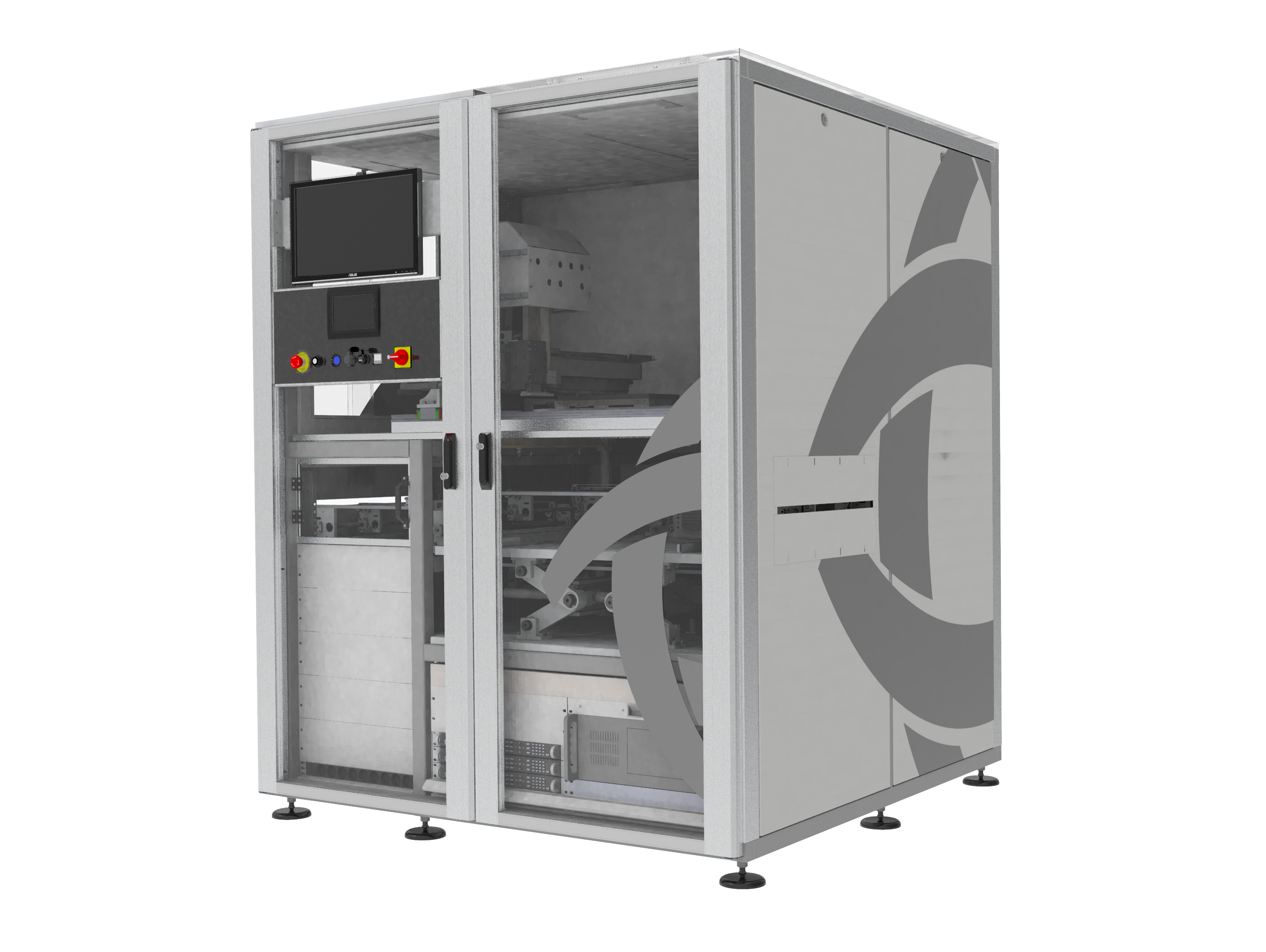

Developed by EIIT- A Controlar company to meet the most demanding standards of the LED lighting market, the Calibration In-Line System (CILS1500) is the ideal solution for calibrating a large number of LEDs  ensuring exceptional consistency and quality in LED products.

The CILS1500 features a versatile and scalable design adaptable / delivers a flexible and scalable solution adaptable to both small production runs or large batches of varying panel sizes, according to customer’s needs.

Equipped with multiple parallel working heads, optical microspheres, linear power supplies, and independent LIN buses, it guarantees accurate correction of color and intensity variations among LEDs during production.

Handler Configuration

  • Dual heads working in parallel: for simultaneous calibration of multiple LEDs, increasing the operational throughput and reducing calibration time as both heads can perform color and intensity corrections at the same time.
  • Multiple Optical Microspheres: enhance the precision of color and intensity measurements during the calibration process. These microspheres diffuse light in a controlled manner, allowing for accurate readings of each LED’s output.
  • Multiple Independent LIN Buses: provide flexible control and communication for individual LED units within the calibration system. This allows for precise management of the power supply and calibration process for different groups of LEDs, enabling simultaneous adjustments and monitoring without interference.
  • NI TestStand Software architecture and MS SQL server traceability, providing  reliable performance and easy integration with existing systems
  • High Handling time of approx. 6 sec. (machine cycle time excluding test).

Main applications

The CILS1500 is a specialized calibration system best suited for industries related to LED lighting and optical applications, such as the LED Manufacturing, Display Technology, Automotive Lighting, Consumer Electronics and Aerospace and Defense markets.
